GE Box Cab |
 |
| - |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 16 June 2008 |

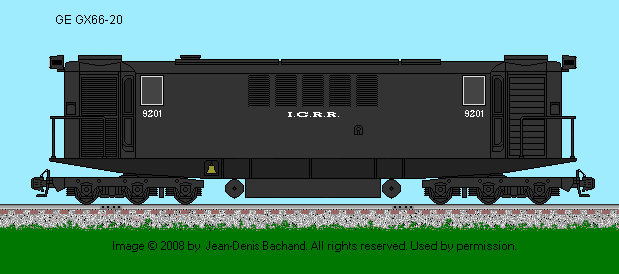

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builders: Bush-Sulzer |
2-cycle Engine: 10V |
| Bore & Stroke |
14" X 16" |
| RPM (Maximum / Minimum) |
275 / 500 |
| Main Generator: GE - 541 |
Horsepower: 2000 |
| Gear Ratio: 65:18 |
Speed: 60 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Belt Driven |
Model: GE |
| Weight: 346,000 lbs |
Traction Motors: GE 716 (six) |
| Tractive Effort (starting) 72,000 lbs @ 30% |
Tractive Effort (continuous): 63,000 lbs @ 11 mph |
| Multiple Unit Capability: No |
Dynamic Braking: No |
| Auxilary Generator: GE |
Alternator: None |
| Air Brake: Westinghouse |
Model: 26LA |
| Compressor: Westinghouse |
Model: 2CDC |
| Quantity Built: One |
Dates: 9/1935 |
| - |
- |
| Exterior Dimensions
| Box Cab |
| Total Length |
60'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
10'-00" |
| Height to Top Engine Hood |
15'-06" |
| Height to Top Cab |
15'-06" |
| Cab Width |
10'-02" |
| Engine Hood Width |
10'-00" |
| Walkway Width |
None |
| Height Walkway |
None |
| Center Bolster |
37'-00" |
| Center Front Truck to Front Pilot |
1'-03" |
| Center Rear Tucrk to Rear Pilot |
1'-03" |
| Distance between Truck Centers |
47'-00" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 1200
| Lubricating Oil: 290 |
| Engine Cooling Water: 440
| Sand Capacity: 28 cu. ft. |
| Options: |
| - |
Reference Sources:
- Extra 2200 South, Issue 35, July/August 1972
|
